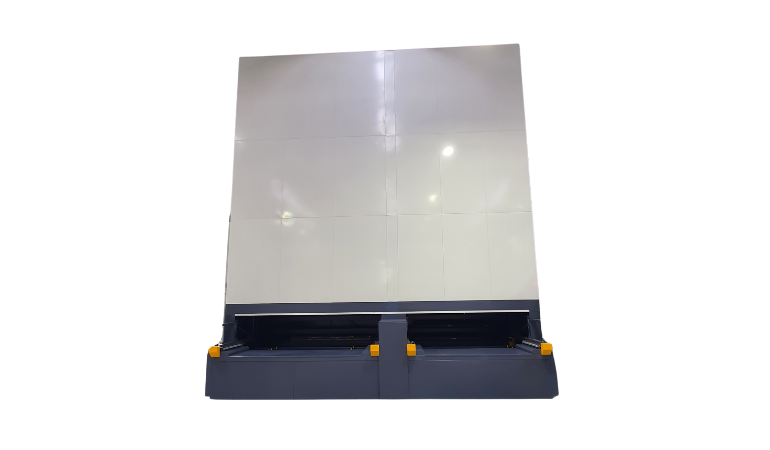

Verti-Store Storage Systems

Verti-Store Storage Systems

We are Manufacturer, Supplier, Exporter of Verti-Store Storage Systems, Vertical Storage Systems, Automated Vertical Storage and our set up is situated in Kolhapur, Maharashtra, India. We also provide services like Consultant, Training, Installation, Storage Solutions and AMC Services.

If your warehouse specializes in or requires solutions for sorting applications, high speed automated picking or parts delivery, our Verti-Store Storage Systems might be the solution best suited for your needs.

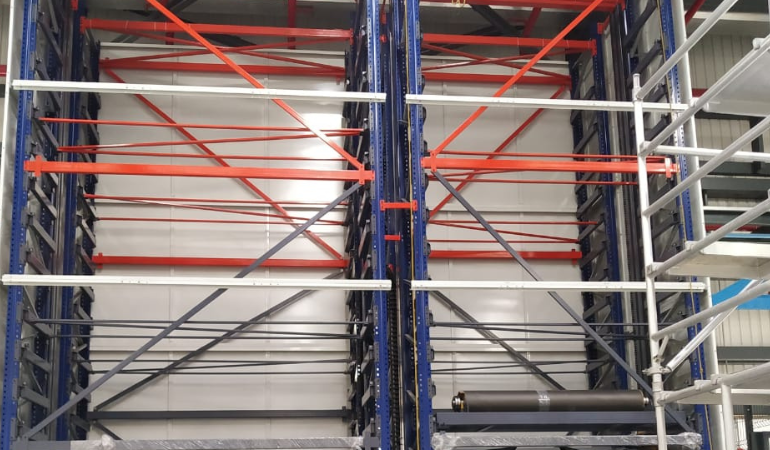

A Verti-Store is a series of pallets placed on an oval track. The carousel pallets rotate to bring the required items to the operator. Computer controls are integrated into the storage system allowing you to perform a wide range of activities from simple transactions to full inventory control.

Customers have been able to reclaim up to 75% of floor space when implementing storage systems.


STRUCTURE

  • Fabricated heavy structure.
  • Verified by FEA (Finite Element Analysis Software)

SAFETY FEATURES

  • Over-travel limit switch.
  • Load alignment sensors
  • Load overweight sensors
  • Emergency stop-chain
  • Fail safe wiring of sensors

LOAD PROFILE

  • Maximum Weight- 1000 Kg
  • Load size — 600-1500 mm

SYSTEM HEIGHT

  • Maximum — 12 M

CONTROLS

  • HMI

PERFORMANCE

  • Lifting Speed - upto 60 m/min
  • Shuttle Speed - upto 60 m/min

POSITIONING SYSTEM

  • Encoders (Option: Laser Unit) coders
  • Laser distance meter (Optional)

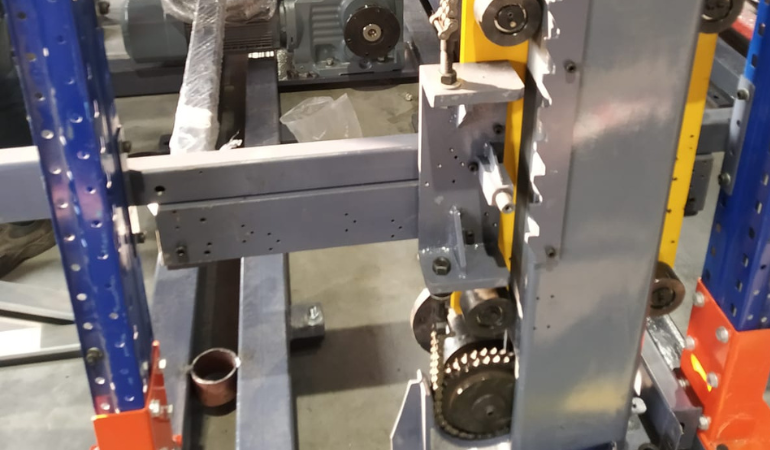

DRIVE & MOTORS

  • A/C motors with VFD

STORAGE APPLICATION

  • Crate Storage
  • Dies and Punches Box Storage
  • Gauges
  • High Value Items
