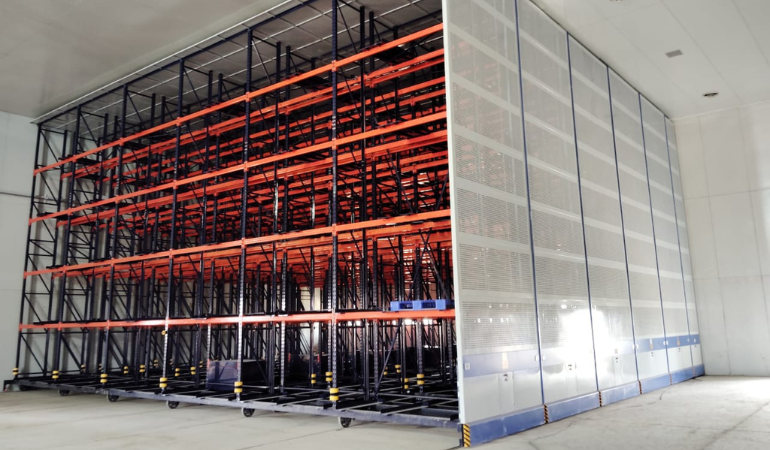

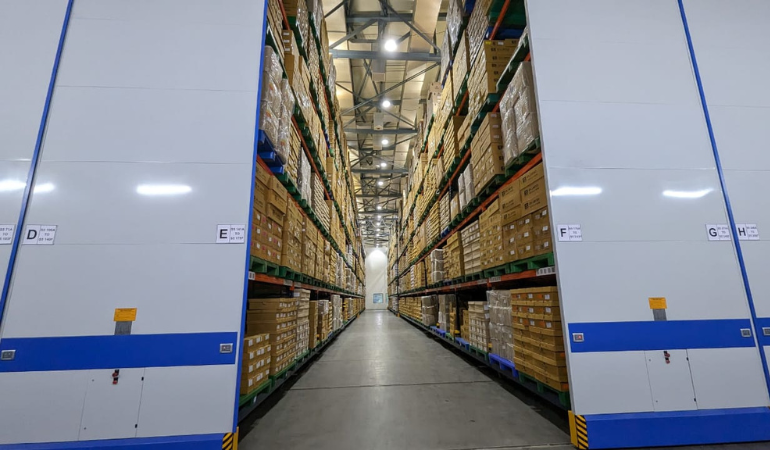

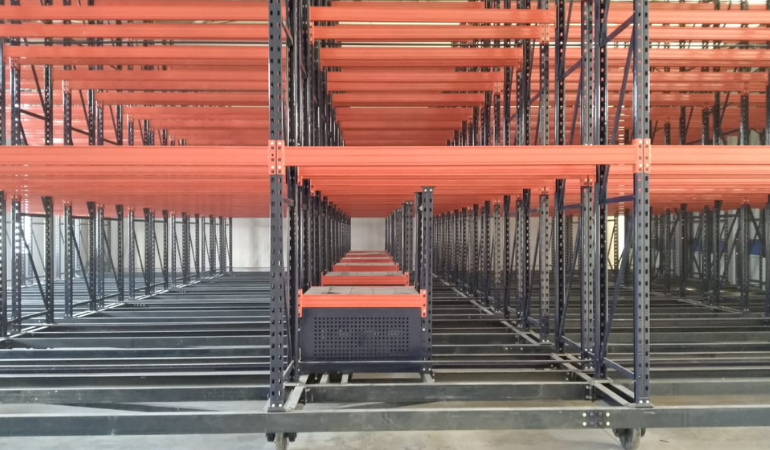

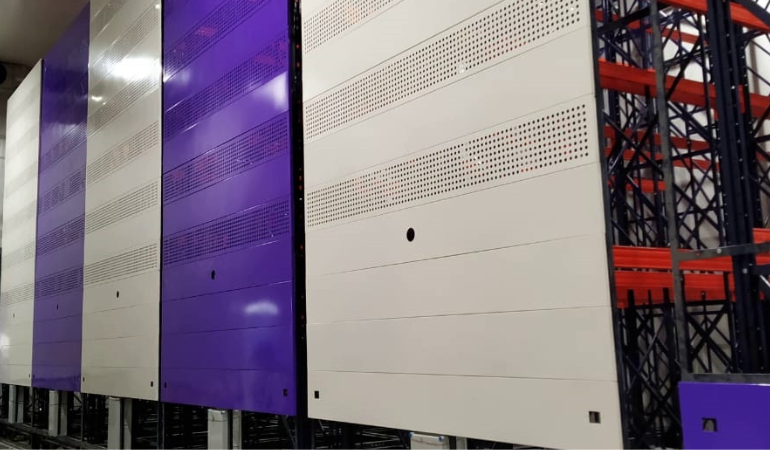

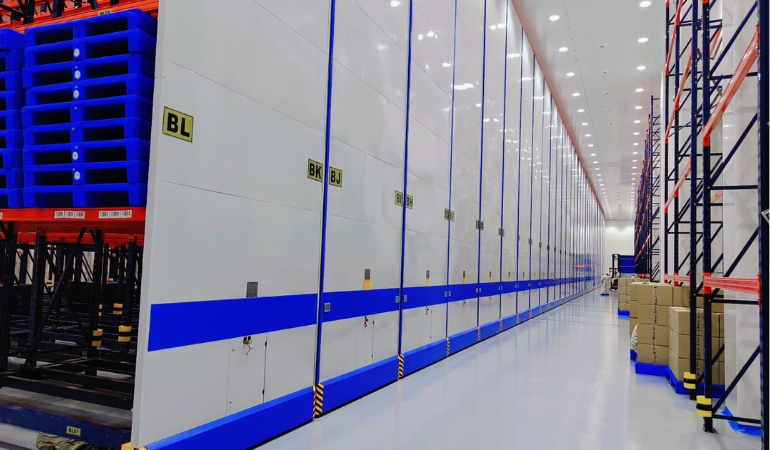

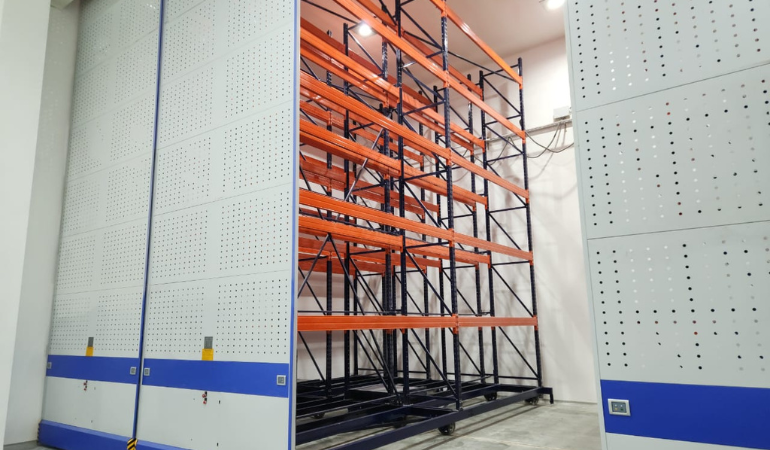

Motorized Mobile Storage Systems
We are Manufacturer, Supplier, Exporter of Motorized Mobile Storage Systems, Mobile Racking Systems, Mobile Compactors and our set up is situated in Kolhapur, Maharashtra, India. We also provide services like Consultant, Training, Installation, Storage Solutions and AMC Services.
Motorised Storage Systems is the product that has revolutionized the concept of space optimization in the Industrial Storage Industry. With ability to store as high as 150 tons in a single mobile unit, this products leaves others far behind in space optimization.
Safety, ease of operation and security are the key features of a Motorised Mobile Storage Systems.
It can fit either heavy duty pallet racks or slotted angle panel racks. Ease of operation and safety features are of course state of the art.
PRIME DRIVE
- Highly efficient and compact 'Planetary' type gearbox.
- Driven by energy efficient 4P-3Ph induction motors. Cables r
- Cables running through conduits. (Traversing cables are supported with cable fastening system)
SENSORS
- Appropriately located, state-of-the-art IR abased sensors.
- No plungers or protruding parts in the aisle.
CONTROL STRATEGY OPTIONS
- Semi Automatic.
- Fully automatic PLC based.
- PC Based fully automatic control system.
TEMPERATURE RANGE
- Ambient Temperature.
- High Temperature up-to 65° C.
- Cold Storage up-to -40° C.
SAFETY FEATURES
- All Sensors wired in fail-safe mode
- Floor level and hip level IR based “Through Beam Sensors”
- EMERGENCY STOP button stations.
- “SAFETY GAP” inbuilt in the undercarriage to safeguard person working in the aisle.
- “OVER TRAVEL" mechanical limit switch.
- Floor Sensors covering all floor area of the system with IR based “light curtain sensors”.
RACK VARIANTS
- Compartment Size : From Pigeon holes 300 x 300 x 300 to Pallets with size 1200 x 1200 x 1500.
- Overall Dimensions : 1) Length up-to 45 m. 2) Height up-to 13 m. 3) Weight per Mobile Unit upto 150 MT.
